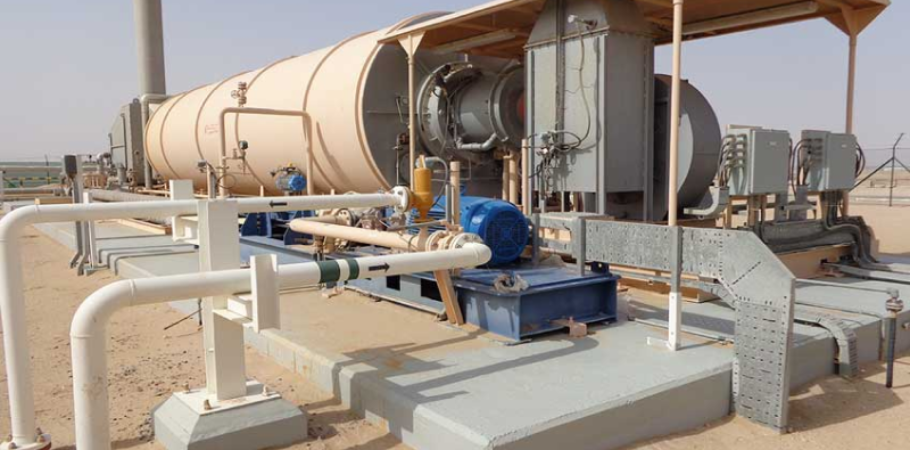

The EN-FAB Steam Generator is a "Once Through" forced circulation type. Designed to supply wet, saturated or superheated steam discharge conditions, Once Through Steam Generators are favored for any installation where low life-cycle costs, high reliability, and or high-purity steam is desired. Pressure ratings are supplied to customer's specifications and are normally furnished in 1000, 1500, or 2500 PSIG working pressure.
Oil & Gas
75-100 Employees
1980
The feed water pump is normally a positive displacement pump to provide the necessary feed water pressure and flow rate required for the generator.
This is normally a double pipe hair pin type heat exchanger used to raise the feed water temperature above the flue gas dew point to prevent condensation of water in the flue gas and the resulting acid corrosion and deposits.
The radiant section is cylindrical with horizontal tubes transposed around the radiant section for equalized heat pick up. The tubes are supported with high alloy tube supports and are free to expand with temperature changes. The radiant section also provides large furnace volume for flexibility in combustion fuel and firing changes. The heat transfer surface in the radiant section normally picks up about 60% to 65% of the overall heat transfer duty. The refractory lined wall provides for reflective heat transfer to the tubes and insulation to reduce heat loss through the chamber wall.
The convection section is fabricated from both bare and extended surface tubes. Flue gases from the radiant section enters the convective section flowing across the bare or shock tubes first and then across the extended surface tubes. The convective section normally picks up 35% of 40%, or more, of the overall heat transfer duty. These convective sections are designed to give the desired efficiencies. Mechanically they are designed for easy tube replacement and maintenance. Side covers may be supplied with lay down doors for cleaning if desired.
